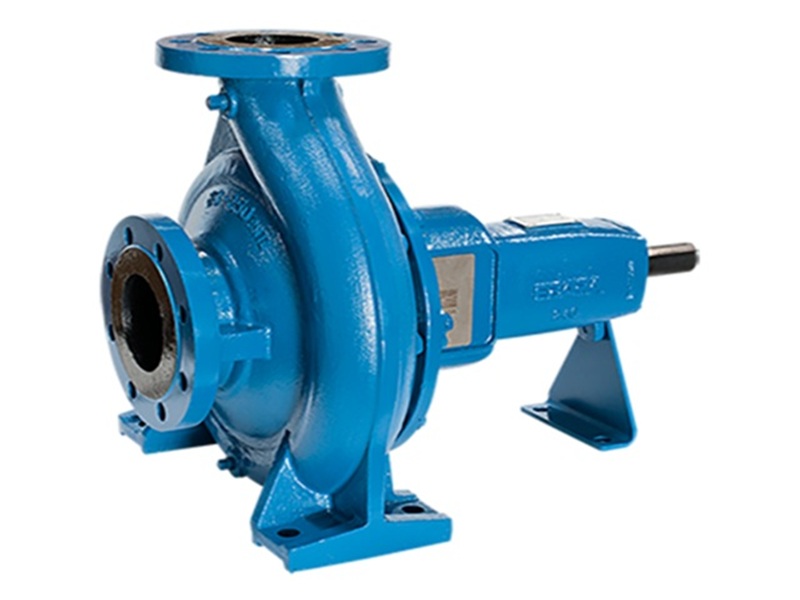

Cast Iron Centrifugal Pump AP03-CIC71
Our AP03-CIC71 series single-stage horizontal centrifugal pump completed the liquid transportation by the centrifugal force generated by the impeller of the rotary pump. The pump body and motor are composed of a main shaft, impeller, pumpcase and mechanical seal.
Cast Iron Centrifugal Pump AP03-CIC71
Apex Engineering AP03-CIC71 centrifugal pumps is standardised to EN733 in cast iron. The pump construction is a long coupled type fitting with IEC standard motor. with the following benefits:-

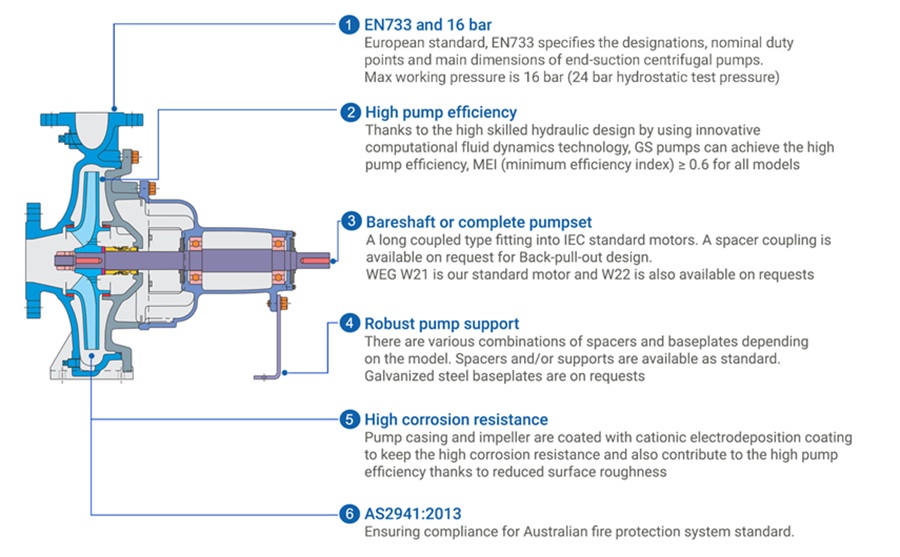

Main Product Features
Specifications
Operating range
| Flow rate | Up to 1,100 m³/h (2 pole) Up to 1300 m³/h (4 pole) |
| Total head | Up to 150 m (2 pole) Up to 95 m (4 pole) |
| Max. working pressure | 16 bar |
| Liquid temperature | -10 to 120℃ |
| Outlet size | 32 to 200 mm |
Pump material
| Casing | Cast iron (FC250) |
| Impeller | Bronze (CAC 406) |
| Casing wearing | Bronze (CAC 406) |
| Shaft | Stainless steel 431 (SUS431 eq.) |
| Mechanical seal | Carbon/SiC/EPDM |

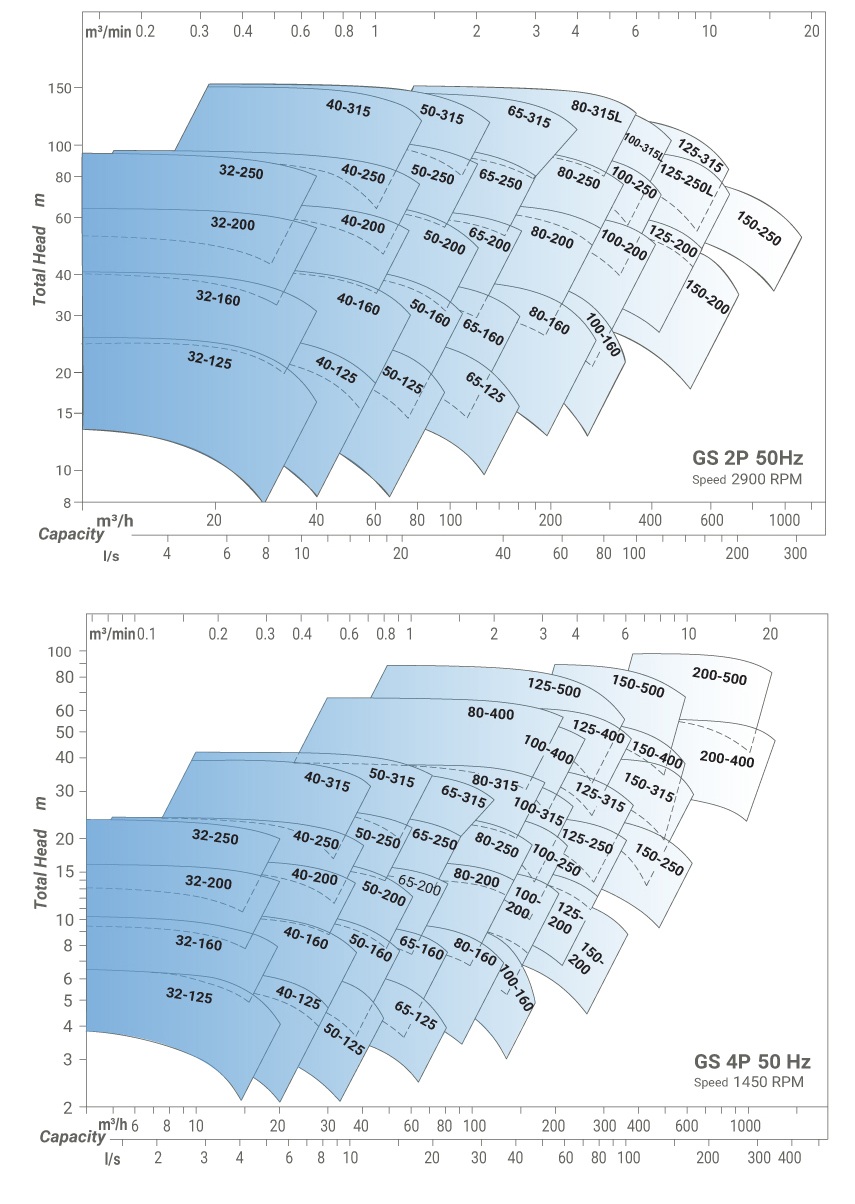

Selection Chart (50Hz)
Applications
IndustryCommercial Building Service
Municipal Water and Westwater
Iirrigation
