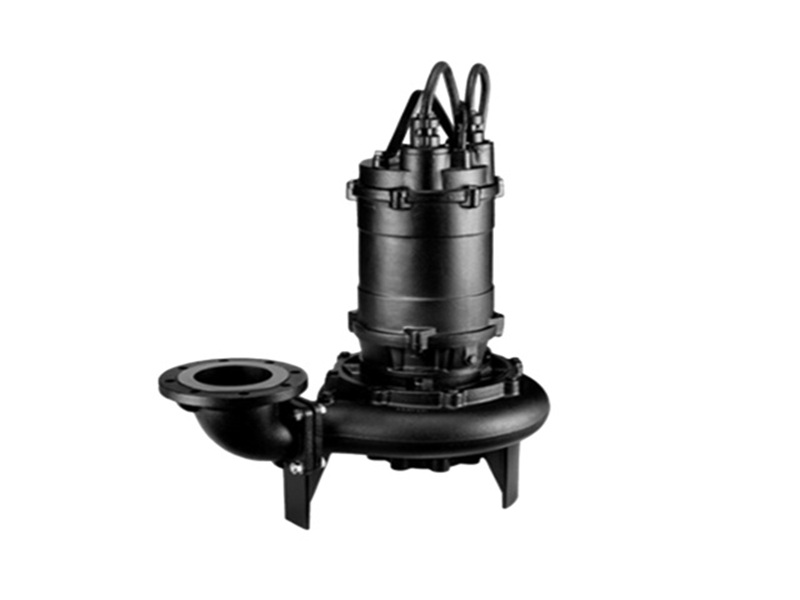

Cast Iron Submersible Pumps AP65-CISP34
Cast iron submersible pumps are durable, heavy-duty units designed for demanding dewatering, sewage, and slurry applications. Their robust construction provides excellent vibration resistance, heat dispersion, and stability, making them the preferred choice for industrial, municipal, and agricultural environments.
Cast Iron Submersible Pumps AP65-CISP34
Our Submersible sewage pump in robust cast iron construction with vortex impeller suitable for sewage, waste-water and storm water drainage.
Pump Benefits:-

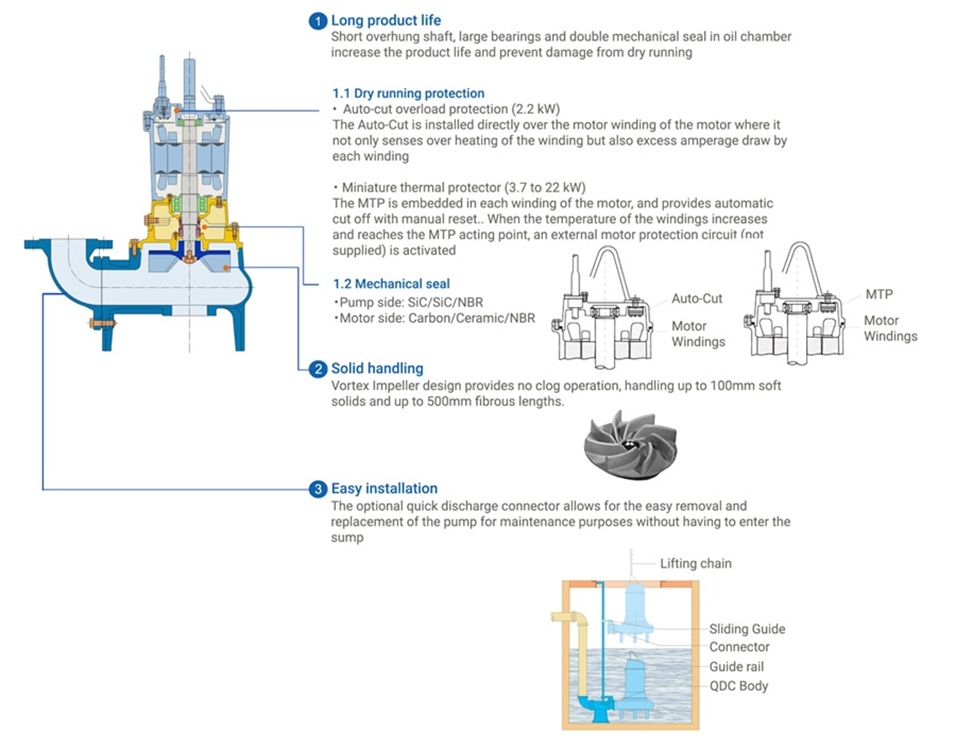

Main Product Features
Specifications
Operating range
| Flow rate | Up to 2,800 l/min |
| Total head | Up to 32 m |
| Max. working pressure | 40°C |
| Max solid size | 80 mm for 80DMLV 100 mm for 100DMLV |
| Max fibre length | 400 mm for 80DMLV 500 mm for 100DMLV |
| Max submergence | 8 m |
| Outlet size | 80 to 100 mm |
Pump material
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Shaft | Stainless steel 403 |
| Mechanical Seal | SiC/SiC/NBR (Lower Faces) Carbon/Ceramic/NBR (Upper Faces) |
| Lubricating liquid | Turbine oil VG32 (SAE 10W/20W) |
Motor
| Frequency | 50Hz |
| Power Rating | 2.2 to 22 kW |
| No. of Poles | 4 |
| Voltage | 380/400/415 ±10% (3 ph) |
| Protection degree | IP58 |
| Insulation class | Class F |

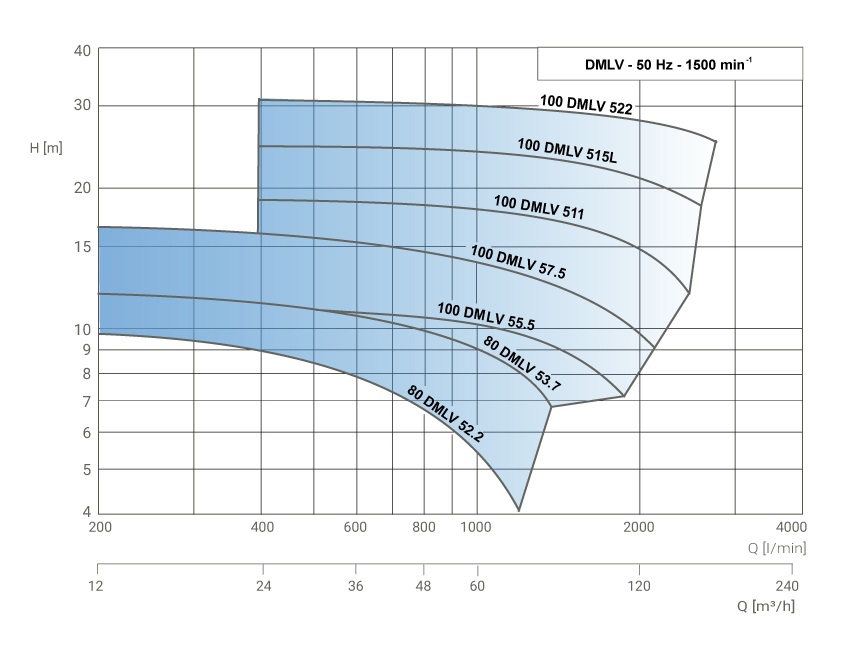

Selection Chart (50 Hz)
Applications
IndustryCommercial Building Service
